演示Html5 Canvas鼠標事件，獲取Canvas對象上的鼠標坐標，演示鍵盤事件通過鍵盤控制Canvas上對象移動。

Canvas對象支持所有的JavaScript的鼠標事件，包括鼠標點擊(MouseClick), 鼠標按下(Mouse Down), 鼠標抬起(Mouse Up),鼠標移動( Mouse Move)對Canvas添加鼠標事件方式有兩種，一種方式是通過API來完成：



復制代碼代碼如下:
// mouse event
canvas.addEventListener("mousedown",doMouseDown,false);
canvas.addEventListener('mousemove', doMouseMove,false);
canvas.addEventListener('mouseup', doMouseUp, false);
另外一種方式在JavaScript中稱為反模式：




復制代碼代碼如下:
canvas.onmousedown = function(e){
}
canvas.onmouseup = function(e){
}
canvas.onmousemove = function(e){
}


獲取鼠標在Canvas對象上坐標：
由於Canvas上鼠標事件中不能直接獲取鼠標在Canvas的坐標，所獲取的都是基於整個
屏幕的坐標。所以通過鼠標事件e.pageX與e.pageY來獲取鼠標位置，然後通過
Canvas. getBoundingClIEntRect()來獲取Canvas對象相對屏幕的相對位置，通過計算

得到鼠標在Canvas的坐標，代碼如下：



復制代碼代碼如下:
function getPointOnCanvas(canvas, x, y) {
var bbox =canvas.getBoundingClIEntRect();
return { x: x- bbox.left *(canvas.width / bbox.width),
y:y - bbox.top * (canvas.height / bbox.height)
};
}


鍵盤事件：
Html5 Canvas本身不支持鍵盤事件監聽與獲取，常用的有兩種方法來解決這個問題：

一：通過Windows對象來實現Canvas鍵盤事件監聽與處理
// key event - use window as object
window.addEventListener('keydown', doKeyDown,true);

二：通過在Canvas對象上添加其它支持鍵盤事件的DOM元素實現鍵盤事件支持



復制代碼代碼如下:
<canvas id="event_canvas"tabindex="0"></canvas>
// key event - use DOM element asobject
canvas.addEventListener('keydown', doKeyDown,true);
canvas.focus();


其中tabindex為Html5 DOM元素，支持鍵盤事件。

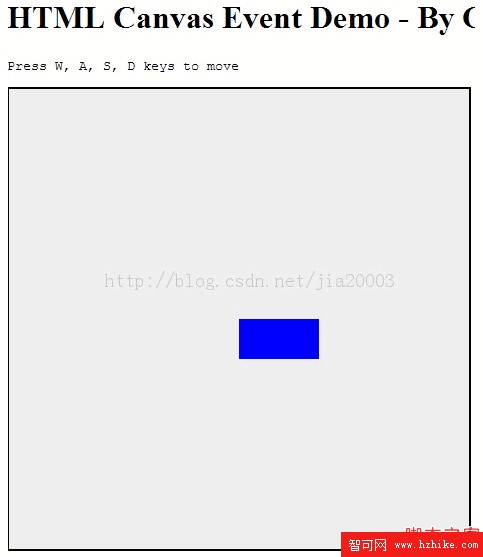

演示，一個可以根據鍵盤上下左右移動的矩形塊:

一個完整的鼠標與鍵盤事件演示代碼如下：



復制代碼代碼如下:
var tempContext = null; // global variable 2d context
var started = false;
var mText_canvas = null;
var x = 0, y =0;
window.add
window.onload = function() {
var canvas = document.getElementById("event_canvas");
console.log(canvas.parentNode.clIEntWidth);
canvas.width = canvas.parentNode.clIEntWidth;
canvas.height = canvas.parentNode.clIEntHeight;
if (!canvas.getContext) {
console.log("Canvas not supported. Please install a Html5 compatible browser.");
return;
}
// get 2D context of canvas and draw rectangel
tempContext = canvas.getContext("2d");
tempContext.fillStyle="blue";
x = canvas.width/2;
y = canvas.height/2;
tempContext.fillRect(x, y, 80, 40);
// key event - use DOM element as object
canvas.addEventListener('keydown', doKeyDown, true);
canvas.focus();
// key event - use window as object
window.addEventListener('keydown', doKeyDown, true);
// mouse event
canvas.addEventListener("mousedown", doMouseDown, false);
canvas.addEventListener('mousemove', doMouseMove, false);
canvas.addEventListener('mouseup', doMouseUp, false);
}
function getPointOnCanvas(canvas, x, y) {
var bbox = canvas.getBoundingClIEntRect();
return { x: x - bbox.left * (canvas.width / bbox.width),
y: y - bbox.top * (canvas.height / bbox.height)
};
}
function doKeyDown(e) {
var keyID = e.keyCode ? e.keyCode :e.which;
if(keyID === 38 || keyID === 87) { // up arrow and W
clearCanvas();
y = y - 10;
tempContext.fillRect(x, y, 80, 40);
e.preventDefault();
}
if(keyID === 39 || keyID === 68) { // right arrow and D
clearCanvas();
x = x + 10;
tempContext.fillRect(x, y, 80, 40);
e.preventDefault();
}
if(keyID === 40 || keyID === 83) { // down arrow and S
clearCanvas();
y = y + 10;
tempContext.fillRect(x, y, 80, 40);
e.preventDefault();
}
if(keyID === 37 || keyID === 65) { // left arrow and A
clearCanvas();
x = x - 10;
tempContext.fillRect(x, y, 80, 40);
e.preventDefault();
}
}
function clearCanvas() {
tempContext.clearRect(0, 0, 500, 500)
}
function doMouseDown(event) {
var x = event.pageX;
var y = event.pageY;
var canvas = event.target;
var loc = getPointOnCanvas(canvas, x, y);
console.log("mouse down at point( x:" + loc.x + ", y:" + loc.y + ")");
tempContext.beginPath();
tempContext.moveTo(loc.x, loc.y);
started = true;
}
function doMouseMove(event) {
var x = event.pageX;
var y = event.pageY;
var canvas = event.target;
var loc = getPointOnCanvas(canvas, x, y);
if (started) {
tempContext.lineTo(loc.x, loc.y);
tempContext.stroke();
}
}
function doMouseUp(event) {
console.log("mouse up now");
if (started) {
doMouseMove(event);
started = false;
}
}


Html部分：



復制代碼代碼如下:
<body>
<h1>Html Canvas Event Demo - By Gloomy Fish</h1>
<pre>Press W, A, S, D keys to move</pre>
<div id="my_painter">
<canvas id="event_canvas" tabindex="0"></canvas>
</div>
</body>
