　　接續上次進度，我們此次來制作頁頭。

　　首先要實現兩側邊緣的美化，如下圖所示：

　　在邊緣處有一層朦胧的亮度反光效果，這也是通過簡單的漸變實現的，而且我們在後面的每個區塊中都要實現類似的效果，所以現在就將所需的資源一起創建了。

　　在Grid中創建一個資源標記，並設置4個筆刷資源：

　　Code

<Grid.Resources>
<LinearGradIEntBrush x:Key="LightLeft" StartPoint="0,0" EndPoint="1,0">
<GradIEntStop Color="#00FFFFFF" Offset="0.1" />
<GradIEntStop Color="#08FFFFFF" Offset="0.4" />
<GradIEntStop Color="#08FFFFFF" Offset="0.6" />
<GradIEntStop Color="#00FFFFFF" Offset="1" />
</LinearGradIEntBrush>
<LinearGradIEntBrush x:Key="LightRight" StartPoint="1,0" EndPoint="0,0">
<GradIEntStop Color="#00FFFFFF" Offset="0.1" />
<GradIEntStop Color="#08FFFFFF" Offset="0.4" />
<GradIEntStop Color="#08FFFFFF" Offset="0.6" />
<GradIEntStop Color="#00FFFFFF" Offset="1" />
</LinearGradIEntBrush>
<LinearGradIEntBrush x:Key="ShadowLeft" StartPoint="0,0" EndPoint="1,0">
<GradIEntStop Color="#00000000" Offset="0.1" />
<GradIEntStop Color="#18000000" Offset="0.4" />
<GradIEntStop Color="#18000000" Offset="0.6" />
<GradIEntStop Color="#00000000" Offset="1" />
</LinearGradIEntBrush>
<LinearGradIEntBrush x:Key="ShadowRight" StartPoint="1,0" EndPoint="0,0">
<GradIEntStop Color="#00000000" Offset="0.1" />
<GradIEntStop Color="#18000000" Offset="0.4" />
<GradIEntStop Color="#18000000" Offset="0.6" />
<GradIEntStop Color="#00000000" Offset="1" />
</LinearGradIEntBrush>
</Grid.Resources>

　LightLeft和LightRight是我們一會用到的，剩下兩個會在其它區塊中使用。

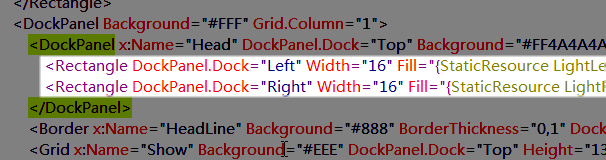

　　在Head區塊中插入兩個矩形，並引用上述兩個資源做填充：

<RectangleDockPanel.Dock="Left"Width="16"Fill="{StaticResourceLightLeft}"/>
<RectangleDockPanel.Dock="Right"Width="16"Fill="{StaticResourceLightRight}"/>

　　兩個矩形一左一右貼靠，邊緣美化工作就完成了。

　　然後請你把以下代碼保存為logo.xaml，這也是由 Microsoft Expression Design 設計並導出的資源，是我們的頁面Logo圖形：

　　Code

<?XML version="1.0" encoding="utf-8"?>
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" XMLns:x="http://schemas.microsoft.com/winfx/2006/xaml">
<DrawingBrush x:Key="logo" Stretch="Uniform">
<DrawingBrush.Drawing>
<DrawingGroup ClipGeometry="F1 M 0,0L 304,0L 304,76.3411L 0,76.3411L 0,0">
<DrawingGroup.Children>
<GeometryDrawing Geometry="F1 M 152,43.3411C 235.947,43.3411 304,50.7284 304,59.8411C 304,68.9538 235.947,76.3411 152,76.3411C 68.0527,76.3411 0,68.9538 0,59.8411C 0,50.7284 68.0528,43.3411 152,43.3411 Z ">
<GeometryDrawing.Brush>
<RadialGradientBrush RadiusX="0.395377" RadiusY="0.51625" Center="0.5,0.5" GradIEntOrigin="0.5,0.5">
<RadialGradientBrush.GradIEntStops>
<GradIEntStop Color="#33FFFCE5" Offset="0"/>
<GradIEntStop Color="#00FFFFFF" Offset="1"/>
</RadialGradientBrush.GradIEntStops>
<RadialGradIEntBrush.RelativeTransform>
<TransformGroup/>
</RadialGradIEntBrush.RelativeTransform>
</RadialGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 60.8001,55.3412L 49.5681,55.3412L 49.5681,23.145L 42.8991,43.5587L 35.021,43.5587L 28.352,23.145L 28.352,55.3412L 17.744,55.3412L 17.744,4.74565L 31.1308,4.74565L 39.2526,28.5598L 47.4036,4.74565L 60.8001,4.74565L 60.8001,55.3412 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 87.632,45.9628L 87.632,37.3208C 86.6959,37.4797 85.6982,37.6981 84.6387,37.976C 83.5792,38.254 82.7764,38.559 82.2304,38.8911C 81.5869,39.2955 81.0783,39.8892 80.7046,40.6726C 80.3308,41.4559 80.1439,42.4721 80.1439,43.7211C 80.1439,45.129 80.4299,46.2624 81.0019,47.1216C 81.5739,47.9807 82.4937,48.4103 83.7612,48.4103C 84.4047,48.4103 85.0969,48.1973 85.8379,47.7713C 86.5789,47.3454 87.1769,46.7425 87.632,45.9628 Z M 87.632,51.7566C 86.9819,52.4714 86.423,53.0868 85.9549,53.603C 85.4869,54.1192 84.837,54.6445 84.005,55.1788C 83.2964,55.6336 82.4953,56.0054 81.6016,56.2942C 80.7078,56.583 79.6499,56.7274 78.4279,56.7274C 75.9319,56.7274 73.8259,55.6065 72.1099,53.3648C 70.3939,51.1231 69.5359,48.2189 69.5359,44.6524C 69.5359,41.844 69.9568,39.5589 70.7986,37.7973C 71.6403,36.0358 72.8834,34.6171 74.5279,33.5413C 76.1139,32.5162 78.0802,31.7851 80.4267,31.3484C 82.7732,30.9116 85.1944,30.5921 87.6904,30.39L 87.6904,29.8376C 87.6904,27.6862 87.1119,26.2007 85.9549,25.3813C 84.798,24.5618 83.0397,24.1521 80.6802,24.1521C 79.9652,24.1521 79.2437,24.2568 78.5157,24.4662C 77.7877,24.6756 77.0564,24.9283 76.3219,25.2243C 75.6849,25.477 75.0642,25.7712 74.4597,26.1069C 73.8552,26.4426 73.3482,26.7151 72.9387,26.9245L 72.0319,26.9245L 72.0319,17.7952C 72.9939,17.4415 74.536,17.0263 76.6583,16.5498C 78.7806,16.0733 80.9109,15.8351 83.0494,15.8351C 85.5454,15.8351 87.7067,16.0625 89.5332,16.5173C 91.3597,16.9722 92.936,17.7483 94.262,18.8457C 95.549,19.8925 96.5337,21.2607 97.2162,22.9501C 97.8987,24.6395 98.24,26.7259 98.24,29.2095L 98.24,55.3412L 87.632,55.3412L 87.632,51.7566 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 118.208,55.3412L 107.6,55.3412L 107.6,17.2212L 118.208,17.2212L 118.208,55.3412 Z M 118.208,11.6765L 107.6,11.6765L 107.6,2.66634L 118.208,2.66634L 118.208,11.6765 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 138.8,55.3412L 128.192,55.3412L 128.192,2.66634L 138.8,2.66634L 138.8,55.3412 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 192.464,55.3412L 181.232,55.3412L 181.232,23.145L 174.563,43.5587L 166.685,43.5587L 160.016,23.145L 160.016,55.3412L 149.408,55.3412L 149.408,4.74565L 162.794,4.74565L 170.916,28.5598L 179.067,4.74565L 192.464,4.74565L 192.464,55.3412 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 219.295,45.9628L 219.295,37.3208C 218.359,37.4797 217.362,37.6981 216.302,37.976C 215.243,38.254 214.44,38.559 213.894,38.8911C 213.25,39.2955 212.742,39.8892 212.368,40.6726C 211.994,41.4559 211.807,42.4721 211.807,43.7211C 211.807,45.129 212.093,46.2624 212.665,47.1216C 213.237,47.9807 214.157,48.4103 215.425,48.4103C 216.068,48.4103 216.76,48.1973 217.501,47.7713C 218.242,47.3454 218.84,46.7425 219.295,45.9628 Z M 219.295,51.7566C 218.645,52.4714 218.086,53.0868 217.618,53.603C 217.15,54.1192 216.5,54.6445 215.668,55.1788C 214.96,55.6336 214.159,56.0054 213.265,56.2942C 212.371,56.583 211.313,56.7274 210.091,56.7274C 207.595,56.7274 205.489,55.6065 203.773,53.3648C 202.057,51.1231 201.199,48.2189 201.199,44.6524C 201.199,41.844 201.62,39.5589 202.462,37.7973C 203.304,36.0358 204.547,34.6171 206.191,33.5413C 207.777,32.5162 209.744,31.7851 212.09,31.3484C 214.437,30.9116 216.858,30.5921 219.354,30.39L 219.354,29.8376C 219.354,27.6862 218.775,26.2007 217.618,25.3813C 216.461,24.5618 214.703,24.1521 212.344,24.1521C 211.629,24.1521 210.907,24.2568 210.179,24.4662C 209.451,24.6756 208.72,24.9283 207.985,25.2243C 207.348,25.477 206.728,25.7712 206.123,26.1069C 205.519,26.4426 205.012,26.7151 204.602,26.9245L 203.695,26.9245L 203.695,17.7952C 204.657,17.4415 206.2,17.0263 208.322,16.5498C 210.444,16.0733 212.574,15.8351 214.713,15.8351C 217.209,15.8351 219.37,16.0625 221.197,16.5173C 223.023,16.9722 224.599,17.7483 225.925,18.8457C 227.212,19.8925 228.197,21.2607 228.88,22.9501C 229.562,24.6395 229.904,26.7259 229.904,29.2095L 229.904,55.3412L 219.295,55.3412L 219.295,51.7566 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 249.871,55.3412L 239.263,55.3412L 239.263,17.2212L 249.871,17.2212L 249.871,55.3412 Z M 249.871,11.6765L 239.263,11.6765L 239.263,2.66634L 249.871,2.66634L 249.871,11.6765 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 270.463,55.3412L 259.855,55.3412L 259.855,2.66634L 270.463,2.66634L 270.463,55.3412 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="5.3" LineJoin="Round" Brush="#19000000"/>
</GeometryDrawing.Pen>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 59.8001,53.3415L 48.5681,53.3415L 48.5681,21.1453L 41.8991,41.559L 34.0211,41.559L 27.3521,21.1453L 27.3521,53.3415L 16.7441,53.3415L 16.7441,2.74596L 30.1308,2.74596L 38.2526,26.5601L 46.4036,2.74596L 59.8001,2.74596L 59.8001,53.3415 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.5,0.934259" EndPoint="0.5,0.00654256">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 86.632,43.9631L 86.632,35.3212C 85.696,35.48 84.6982,35.6984 83.6387,35.9764C 82.5792,36.2543 81.7765,36.5594 81.2305,36.8914C 80.587,37.2958 80.0783,37.8896 79.7046,38.6729C 79.3308,39.4563 79.144,40.4724 79.144,41.7214C 79.144,43.1293 79.43,44.2628 80.002,45.1219C 80.574,45.981 81.4937,46.4106 82.7612,46.4106C 83.4047,46.4106 84.097,46.1976 84.838,45.7717C 85.579,45.3457 86.177,44.7429 86.632,43.9631 Z M 86.632,49.7569C 85.982,50.4717 85.423,51.0871 84.955,51.6033C 84.487,52.1196 83.837,52.6448 83.005,53.1791C 82.2965,53.6339 81.4954,54.0057 80.6016,54.2945C 79.7079,54.5833 78.65,54.7277 77.428,54.7277C 74.932,54.7277 72.826,53.6069 71.11,51.3651C 69.394,49.1234 68.536,46.2193 68.536,42.6528C 68.536,39.8443 68.9568,37.5593 69.7986,35.7977C 70.6403,34.0361 71.8835,32.6174 73.528,31.5417C 75.114,30.5165 77.0802,29.7855 79.4267,29.3487C 81.7732,28.9119 84.1945,28.5925 86.6905,28.3903L 86.6905,27.838C 86.6905,25.6865 86.112,24.201 84.955,23.3816C 83.798,22.5622 82.0397,22.1525 79.6802,22.1525C 78.9652,22.1525 78.2437,22.2572 77.5157,22.4665C 76.7877,22.6759 76.0565,22.9286 75.322,23.2246C 74.685,23.4773 74.0642,23.7715 73.4597,24.1072C 72.8552,24.4429 72.3482,24.7154 71.9387,24.9249L 71.032,24.9249L 71.032,15.7955C 71.994,15.4418 73.5361,15.0267 75.6583,14.5501C 77.7806,14.0737 79.911,13.8354 82.0495,13.8354C 84.5455,13.8354 86.7067,14.0628 88.5332,14.5177C 90.3597,14.9725 91.936,15.7486 93.262,16.846C 94.549,17.8929 95.5337,19.261 96.2163,20.9504C 96.8988,22.6398 97.24,24.7263 97.24,27.2099L 97.24,53.3415L 86.632,53.3415L 86.632,49.7569 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.5,0.860459" EndPoint="0.5,0.0843556">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 117.208,53.3415L 106.6,53.3415L 106.6,15.2215L 117.208,15.2215L 117.208,53.3415 Z M 117.208,9.67683L 106.6,9.67683L 106.6,0.666672L 117.208,0.666672L 117.208,9.67683 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.500001,0.589712" EndPoint="0.500001,0.351091">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 137.8,53.3415L 127.192,53.3415L 127.192,0.666672L 137.8,0.666672L 137.8,53.3415 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.499995,0.589712" EndPoint="0.499995,0.351091">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 191.464,53.3415L 180.232,53.3415L 180.232,21.1453L 173.563,41.559L 165.685,41.559L 159.016,21.1453L 159.016,53.3415L 148.408,53.3415L 148.408,2.74596L 161.794,2.74596L 169.916,26.5601L 178.067,2.74596L 191.464,2.74596L 191.464,53.3415 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.499999,0.934259" EndPoint="0.499999,0.00654256">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 218.296,43.9631L 218.296,35.3212C 217.36,35.48 216.362,35.6984 215.302,35.9764C 214.243,36.2543 213.44,36.5594 212.894,36.8914C 212.251,37.2958 211.742,37.8896 211.368,38.6729C 210.994,39.4563 210.808,40.4724 210.808,41.7214C 210.808,43.1293 211.094,44.2628 211.666,45.1219C 212.238,45.981 213.157,46.4106 214.425,46.4106C 215.068,46.4106 215.761,46.1976 216.502,45.7717C 217.243,45.3457 217.841,44.7429 218.296,43.9631 Z M 218.296,49.7569C 217.646,50.4717 217.087,51.0871 216.619,51.6033C 216.151,52.1196 215.501,52.6448 214.669,53.1791C 213.96,53.6339 213.159,54.0057 212.265,54.2945C 211.371,54.5833 210.314,54.7277 209.092,54.7277C 206.596,54.7277 204.49,53.6069 202.773,51.3651C 201.057,49.1234 200.2,46.2193 200.2,42.6528C 200.2,39.8443 200.62,37.5593 201.462,35.7977C 202.304,34.0361 203.547,32.6174 205.192,31.5417C 206.778,30.5165 208.744,29.7855 211.09,29.3487C 213.437,28.9119 215.858,28.5925 218.354,28.3903L 218.354,27.838C 218.354,25.6865 217.776,24.201 216.619,23.3816C 215.462,22.5622 213.703,22.1525 211.344,22.1525C 210.629,22.1525 209.907,22.2572 209.179,22.4665C 208.451,22.6759 207.72,22.9286 206.986,23.2246C 206.349,23.4773 205.728,23.7715 205.123,24.1072C 204.519,24.4429 204.012,24.7154 203.602,24.9249L 202.695,24.9249L 202.695,15.7955C 203.658,15.4418 205.2,15.0267 207.322,14.5501C 209.444,14.0737 211.575,13.8354 213.713,13.8354C 216.209,13.8354 218.37,14.0628 220.197,14.5177C 222.023,14.9725 223.6,15.7486 224.926,16.846C 226.213,17.8929 227.197,19.261 227.88,20.9504C 228.562,22.6398 228.904,24.7263 228.904,27.2099L 228.904,53.3415L 218.296,53.3415L 218.296,49.7569 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.499998,0.860459" EndPoint="0.499998,0.0843556">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 248.871,53.3415L 238.263,53.3415L 238.263,15.2215L 248.871,15.2215L 248.871,53.3415 Z M 248.871,9.67683L 238.263,9.67683L 238.263,0.666672L 248.871,0.666672L 248.871,9.67683 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.499997,0.589712" EndPoint="0.499997,0.351091">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
<GeometryDrawing Geometry="F1 M 269.463,53.3415L 258.855,53.3415L 258.855,0.666672L 269.463,0.666672L 269.463,53.3415 Z ">
<GeometryDrawing.Pen>
<Pen Thickness="1.33333" LineJoin="Round" Brush="#FFCF7200"/>
</GeometryDrawing.Pen>
<GeometryDrawing.Brush>
<LinearGradIEntBrush StartPoint="0.499996,0.589712" EndPoint="0.499996,0.351091">
<LinearGradientBrush.GradIEntStops>
<GradIEntStop Color="#FFF8B057" Offset="0"/>
<GradIEntStop Color="#FFFFD68A" Offset="1"/>
</LinearGradientBrush.GradIEntStops>
</LinearGradIEntBrush>
</GeometryDrawing.Brush>
</GeometryDrawing>
</DrawingGroup.Children>
</DrawingGroup>
</DrawingBrush.Drawing>
</DrawingBrush>
</ResourceDictionary>

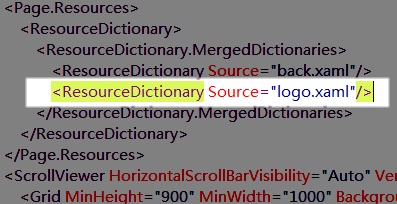

接著在Page的資源中引入這個資源：

<ResourceDictionarySource="logo.xaml"/>

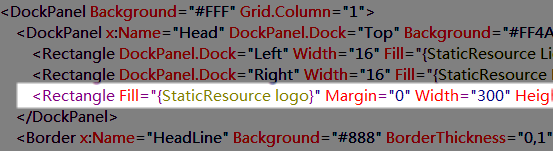

　　在Head中加入矩形填充該資源：

<RectangleFill="{StaticResourcelogo}"Margin="0"Width="300"Height="125"DockPanel.Dock="Left"/>

　　然後再來加一條縱向分隔線：

<Rectangle Height="75" Width="1" DockPanel.Dock="Left">
<Rectangle.Fill>
<LinearGradIEntBrush StartPoint="0,0" EndPoint="0,1">
<GradIEntStop Color="#03FFFFFF" Offset="0" />
<GradIEntStop Color="#5DFFFFFF" Offset="0.5" />
<GradIEntStop Color="#00FFFFFF" Offset="1" />
</LinearGradIEntBrush>
</Rectangle.Fill>
</Rectangle>

　　這是使用了一個1像素寬的矩形來實現的，其效果如下：

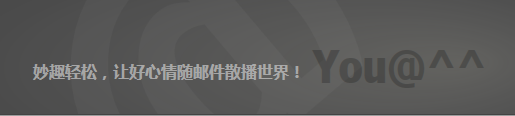

　後面要實現的內容是這些：

　　這實際上就是在一個Canvas容器中放置了幾個文本標簽來實現的：

　　Code

<Canvas ClipToBounds="True">
<Canvas.Background>
<RadialGradientBrush RadiusX="0.395548" RadiusY="0.952428" Center="0.343334,0.578031" GradIEntOrigin="0.543334,0.578031">
<RadialGradientBrush.GradIEntStops>
<GradIEntStop Color="#23FFFCE5" Offset="0"/>
<GradIEntStop Color="#00FFFFFF" Offset="1"/>
</RadialGradientBrush.GradIEntStops>
<RadialGradIEntBrush.RelativeTransform>
<TransformGroup>
<SkewTransform CenterX="0.343334" CenterY="0.578031" AngleX="-6.15299" AngleY="0"/>
<RotateTransform CenterX="0.343334" CenterY="0.578031" Angle="-6.59875"/>
</TransformGroup>
</RadialGradIEntBrush.RelativeTransform>
</RadialGradIEntBrush>
</Canvas.Background>
<Label Margin="52,-177,0,0" Foreground="#09FFFFFF" FontFamily="Nina" FontWeight="Bold" FontSize="354">
<Label.RenderTransform>
<RotateTransform Angle="0" CenterX="172" CenterY="240"/>
</Label.RenderTransform>
<Label.Triggers>
<EventTrigger RoutedEvent="FrameworkElement.Loaded">
<EventTrigger.Actions>
<BeginStoryboard>
<Storyboard>
<DoubleAnimation To="360" Duration="0:0:10" RepeatBehavior="Forever" Storyboard.TargetProperty="(Label.RenderTransform).(RotateTransform.Angle)"/>
</Storyboard>
</BeginStoryboard>
</EventTrigger.Actions>
</EventTrigger>
</Label.Triggers>
@
</Label>
<Label Margin="312,35,0,0" Foreground="#61000000" FontFamily="Nina" FontWeight="Bold" FontSize="44">You@^^</Label>
<Label Margin="32,57,0,0" Foreground="#AFC3C3C3" FontWeight="Bold" FontSize="16">
妙趣輕松，讓好心情隨郵件散播世界！
</Label>
</Canvas>

Canvas的ClipToBounds屬性設為True可以使超出容器范圍的內容被剪裁，比如我們這裡的那個巨大的@符號。

　　這個@符號被我設置了動畫，它會在那裡不停的旋轉。

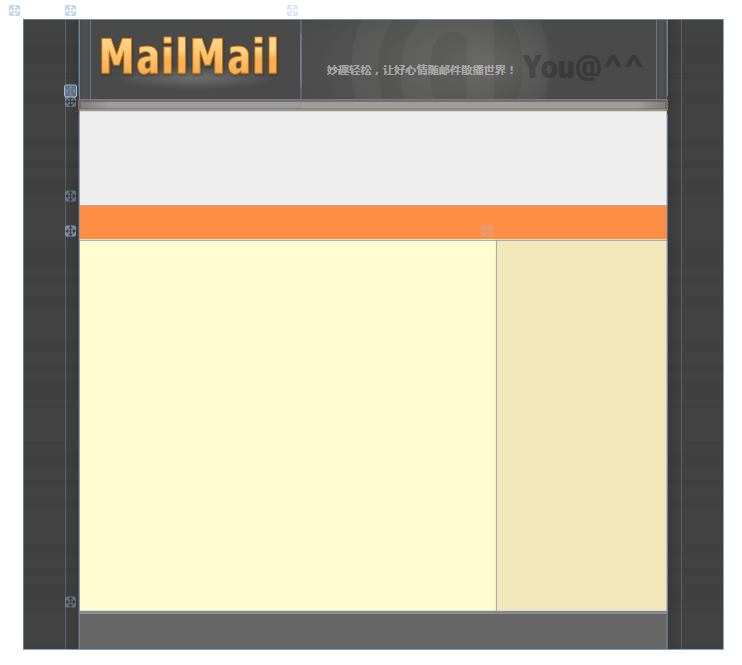

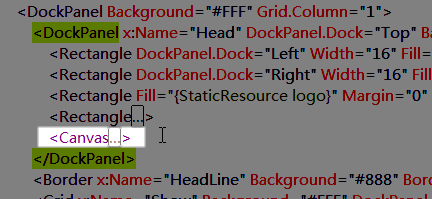

　　現在，把上面那段代碼也插入Head區塊，就完成了頁面頭部的制作：

　　嗯，對，還有下面這條水平線也要給一塊弄出來：

　　這很簡單，我們只使用一個漸變邊框和一個漸變背景就可以實現了：

　　Code

<Border x:Name="HeadLine" BorderThickness="0,1" DockPanel.Dock="Top" Height="15">
<Border.BorderBrush>
<LinearGradIEntBrush StartPoint="0,0" EndPoint="0,1">
<GradIEntStop Color="#D81B1B1B" Offset="0" />
<GradIEntStop Color="#FFF" Offset="1" />
</LinearGradIEntBrush>
</Border.BorderBrush>
<Border.Background>
<LinearGradIEntBrush StartPoint="0,0" EndPoint="1,0">
<GradIEntStop Color="#FF9D9D9D" Offset="0" />
<GradIEntStop Color="#FF808080" Offset="0.005" />
<GradIEntStop Color="#FF9D9D9D" Offset="0.05" />
<GradIEntStop Color="#FF9D9D9D" Offset="0.95" />
<GradIEntStop Color="#FF808080" Offset="0.995" />
<GradIEntStop Color="#FF9D9D9D" Offset="1" />
</LinearGradIEntBrush>
</Border.Background>
</Border>

邊框為什麼也要漸變呢？因為我們這個只有上下有邊框線，而且它們是不同顏色的，所以一個漸變就搞定了。至此全部代碼如下：

　　Code

　　<Page

XMLns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
XMLns:x="http://schemas.microsoft.com/winfx/2006/xaml"
WindowTitle="MailMail"
FontFamily="微軟雅黑"
Background="#FF424242"
SnapsToDevicePixels="True">
　　<Page.Resources>
　　　　<ResourceDictionary>
　　　　　　<ResourceDictionary.MergedDictionarIEs>
　　　　　　　　<ResourceDictionary Source="back.xaml"/>
　　　　　　　　<ResourceDictionary Source="logo.xaml"/>
　　　　　　</ResourceDictionary.MergedDictionarIEs>
　　　　</ResourceDictionary>
　　</Page.Resources>
　　<ScrollVIEwer HorizontalScrollBarVisibility="Auto" VerticalScrollBarVisibility="Auto">
　　　　<Grid MinHeight="900" MinWidth="1000" Background="{StaticResource back}">
　　　　　　<Grid.ColumnDefinitions>
　　　　　　　　<ColumnDefinition Width="8*"/>
　　　　　　　　<ColumnDefinition Width="84*"/>
　　　　　　　　<ColumnDefinition Width="8*"/>
　　　　　　</Grid.ColumnDefinitions>
　　　　　　<Grid.Resources>
　　　　　　　　<LinearGradIEntBrush x:Key="LightLeft" StartPoint="0,0" EndPoint="1,0">
　　　　　　　　　　<GradIEntStop Color="#00FFFFFF" Offset="0.1" />
　　　　　　　　　　<GradIEntStop Color="#08FFFFFF" Offset="0.4" />
　　　　　　　　　　<GradIEntStop Color="#08FFFFFF" Offset="0.6" />
　　　　　　　　　　<GradIEntStop Color="#00FFFFFF" Offset="1" />
　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　<LinearGradIEntBrush x:Key="LightRight" StartPoint="1,0" EndPoint="0,0">
　　　　　　　　　　<GradIEntStop Color="#00FFFFFF" Offset="0.1" />
　　　　　　　　　　<GradIEntStop Color="#08FFFFFF" Offset="0.4" />
　　　　　　　　　　<GradIEntStop Color="#08FFFFFF" Offset="0.6" />
　　　　　　　　　　<GradIEntStop Color="#00FFFFFF" Offset="1" />
　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　<LinearGradIEntBrush x:Key="ShadowLeft" StartPoint="0,0" EndPoint="1,0">
　　　　　　　　　　<GradIEntStop Color="#00000000" Offset="0.1" />
　　　　　　　　　　<GradIEntStop Color="#18000000" Offset="0.4" />
　　　　　　　　　　<GradIEntStop Color="#18000000" Offset="0.6" />
　　　　　　　　　　<GradIEntStop Color="#00000000" Offset="1" />
　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　<LinearGradIEntBrush x:Key="ShadowRight" StartPoint="1,0" EndPoint="0,0">
　　　　　　　　　　<GradIEntStop Color="#00000000" Offset="0.1" />
　　　　　　　　　　<GradIEntStop Color="#18000000" Offset="0.4" />
　　　　　　　　　　<GradIEntStop Color="#18000000" Offset="0.6" />
　　　　　　　　　　<GradIEntStop Color="#00000000" Offset="1" />
　　　　　　　　</LinearGradIEntBrush>
　　　　　　</Grid.Resources>
　　　　　　<Rectangle Width="20" Grid.Column="0" HorizontalAlignment="Right" Margin="0,0,0,0">
　　　　　　　　<Rectangle.Fill>
　　　　　　　　　　<LinearGradIEntBrush StartPoint="1,0" EndPoint="0,0">
　　　　　　　　　　　　<GradIEntStop Color="#00000000" Offset="1" />
　　　　　　　　　　　　<GradIEntStop Color="#20000000" Offset="0" />
　　　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　</Rectangle.Fill>
　　　　　　</Rectangle>
　　　　　　<Rectangle Width="20" Grid.Column="3" HorizontalAlignment="Left" Margin="0,0,0,0">
　　　　　　　　<Rectangle.Fill>
　　　　　　　　　　<LinearGradIEntBrush StartPoint="1,0" EndPoint="0,0">
　　　　　　　　　　　　<GradIEntStop Color="#00000000" Offset="0" />
　　　　　　　　　　　　<GradIEntStop Color="#20000000" Offset="1" />
　　　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　</Rectangle.Fill>
　　　　　　</Rectangle>
　　　　　　<DockPanel Background="#FFF" Grid.Column="1">
　　　　　　　　<DockPanel x:Name="Head" DockPanel.Dock="Top" Background="#FF4A4A4A" Height="115">
　　　　　　　　　　<Rectangle DockPanel.Dock="Left" Width="16" Fill="{StaticResource LightLeft}"/>
　　　　　　　　　　<Rectangle DockPanel.Dock="Right" Width="16" Fill="{StaticResource LightRight}"/>
　　　　　　　　　　<Rectangle Fill="{StaticResource logo}" Margin="0" Width="300" Height="125" DockPanel.Dock="Left" />
　　　　　　　　　　<Rectangle Height="75" Width="1" DockPanel.Dock="Left">
　　　　　　　　　　　　<Rectangle.Fill>
　　　　　　　　　　　　　　<LinearGradIEntBrush StartPoint="0,0" EndPoint="0,1">
　　　　　　　　　　　　　　　　<GradIEntStop Color="#03FFFFFF" Offset="0" />
　　　　　　　　　　　　　　　　<GradIEntStop Color="#5DFFFFFF" Offset="0.5" />
　　　　　　　　　　　　　　　　<GradIEntStop Color="#00FFFFFF" Offset="1" />
　　　　　　　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　　　　　</Rectangle.Fill>
　　　　　　　　　　</Rectangle>
　　　　　　　　　　<Canvas ClipToBounds="True">
　　　　　　　　　　　　<Canvas.Background>
　　　　　　　　　　　　　　<RadialGradientBrush RadiusX="0.395548" RadiusY="0.952428" Center="0.343334,0.578031" GradIEntOrigin="0.543334,0.578031">
　　　　　　　　　　　　　　　　<RadialGradientBrush.GradIEntStops>
　　　　　　　　　　　　　　　　　　<GradIEntStop Color="#23FFFCE5" Offset="0" />
　　　　　　　　　　　　　　　　　　<GradIEntStop Color="#00FFFFFF" Offset="1" />
　　　　　　　　　　　　　　　　</RadialGradientBrush.GradIEntStops>
　　　　　　　　　　　　　　　　<RadialGradIEntBrush.RelativeTransform>
　　　　　　　　　　　　　　　　　　<TransformGroup>
　　　　　　　　　　　　　　　　　　　　<SkewTransform CenterX="0.343334" CenterY="0.578031" AngleX="-6.15299" AngleY="0" />
　　　　　　　　　　　　　　　　　　　　<RotateTransform CenterX="0.343334" CenterY="0.578031" Angle="-6.59875" />
　　　　　　　　　　　　　　　　　　</TransformGroup>
　　　　　　　　　　　　　　　　</RadialGradIEntBrush.RelativeTransform>
　　　　　　　　　　　　　　</RadialGradIEntBrush>
　　　　　　　　　　　　</Canvas.Background>
　　　　　　　　　　　　<Label Margin="52,-177,0,0" Foreground="#09FFFFFF" FontFamily="Nina" FontWeight="Bold" FontSize="354">
　　　　　　　　　　　　　　<Label.RenderTransform>
　　　　　　　　　　　　　　　　<RotateTransform Angle="0" CenterX="172" CenterY="240" />
　　　　　　　　　　　　　　</Label.RenderTransform>
　　　　　　　　　　　　　　<Label.Triggers>
　　　　　　　　　　　　　　　　<EventTrigger RoutedEvent="FrameworkElement.Loaded">
　　　　　　　　　　　　　　　　　　<EventTrigger.Actions>
　　　　　　　　　　　　　　　　　　　　<BeginStoryboard>
　　　　　　　　　　　　　　　　　　　　　　<Storyboard>
　　　　　　　　　　　　　　　　　　　　　　　　<DoubleAnimation To="360" Duration="0:0:10" RepeatBehavior="Forever" Storyboard.TargetProperty="(Label.RenderTransform).(RotateTransform.Angle)" />
　　　　　　　　　　　　　　　　　　　　　　</Storyboard>
　　　　　　　　　　　　　　　　　　　　</BeginStoryboard>
　　　　　　　　　　　　　　　　　　</EventTrigger.Actions>
　　　　　　　　　　　　　　　　</EventTrigger>
　　　　　　　　　　　　　　</Label.Triggers>
　　　　　　　　　　　　　　@
　　　　　　　　　　　　</Label>
　　　　　　　　　　　　<Label Margin="312,35,0,0" Foreground="#61000000" FontFamily="Nina" FontWeight="Bold" FontSize="44">You@^^</Label>
　　　　　　　　　　　　<Label Margin="32,57,0,0" Foreground="#AFC3C3C3" FontWeight="Bold" FontSize="16">
　　　　　　　　　　　　　　妙趣輕松，讓好心情隨郵件散播世界！
　　　　　　　　　　　　</Label>
　　　　　　　　　　</Canvas>
　　　　　　　　</DockPanel>
　　　　　　　　<Border x:Name="HeadLine" BorderThickness="0,1" DockPanel.Dock="Top" Height="15">
　　　　　　　　　　<Border.BorderBrush>
　　　　　　　　　　　　<LinearGradIEntBrush StartPoint="0,0" EndPoint="0,1">
　　　　　　　　　　　　　　<GradIEntStop Color="#D81B1B1B" Offset="0" />
　　　　　　　　　　　　　　<GradIEntStop Color="#FFF" Offset="1" />
　　　　　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　　　</Border.BorderBrush>
　　　　　　　　　　<Border.Background>
　　　　　　　　　　　　<LinearGradIEntBrush StartPoint="0,0" EndPoint="1,0">
　　　　　　　　　　　　　　<GradIEntStop Color="#FF9D9D9D" Offset="0" />
　　　　　　　　　　　　　　<GradIEntStop Color="#FF808080" Offset="0.005" />
　　　　　　　　　　　　　　<GradIEntStop Color="#FF9D9D9D" Offset="0.05" />
　　　　　　　　　　　　　　<GradIEntStop Color="#FF9D9D9D" Offset="0.95" />
　　　　　　　　　　　　　　<GradIEntStop Color="#FF808080" Offset="0.995" />
　　　　　　　　　　　　　　<GradIEntStop Color="#FF9D9D9D" Offset="1" />
　　　　　　　　　　　　</LinearGradIEntBrush>
　　　　　　　　　　</Border.Background>
　　　　　　　　</Border>
　　　　　　　　<Grid x:Name="Show" Background="#EEE" DockPanel.Dock="Top" Height="135" ClipToBounds="True"></Grid>
　　　　　　　　<Border x:Name="Channel" DockPanel.Dock="Top" Height="50" Background="#FF8E45" BorderThickness="0,1,0,0" BorderBrush="#FFF"></Border>
　　　　　　　　<Border x:Name="Footer" Background="#666" BorderBrush="#888" BorderThickness="0,4,0,0" DockPanel.Dock="Bottom" Height="55"></Border>
　　　　　　　　<DockPanel x:Name="Body" Background="#FFFFFCD1">
　　　　　　　　　　<DockPanel x:Name="Side" Background="#1E874900" DockPanel.Dock="Right" Width="245"></DockPanel>
　　　　　　　　　　<StackPanel x:Name="Content"></StackPanel>
　　　　　　　　</DockPanel>
　　　　　　</DockPanel>
　　　　</Grid>
　　</ScrollVIEwer>
</Page>
